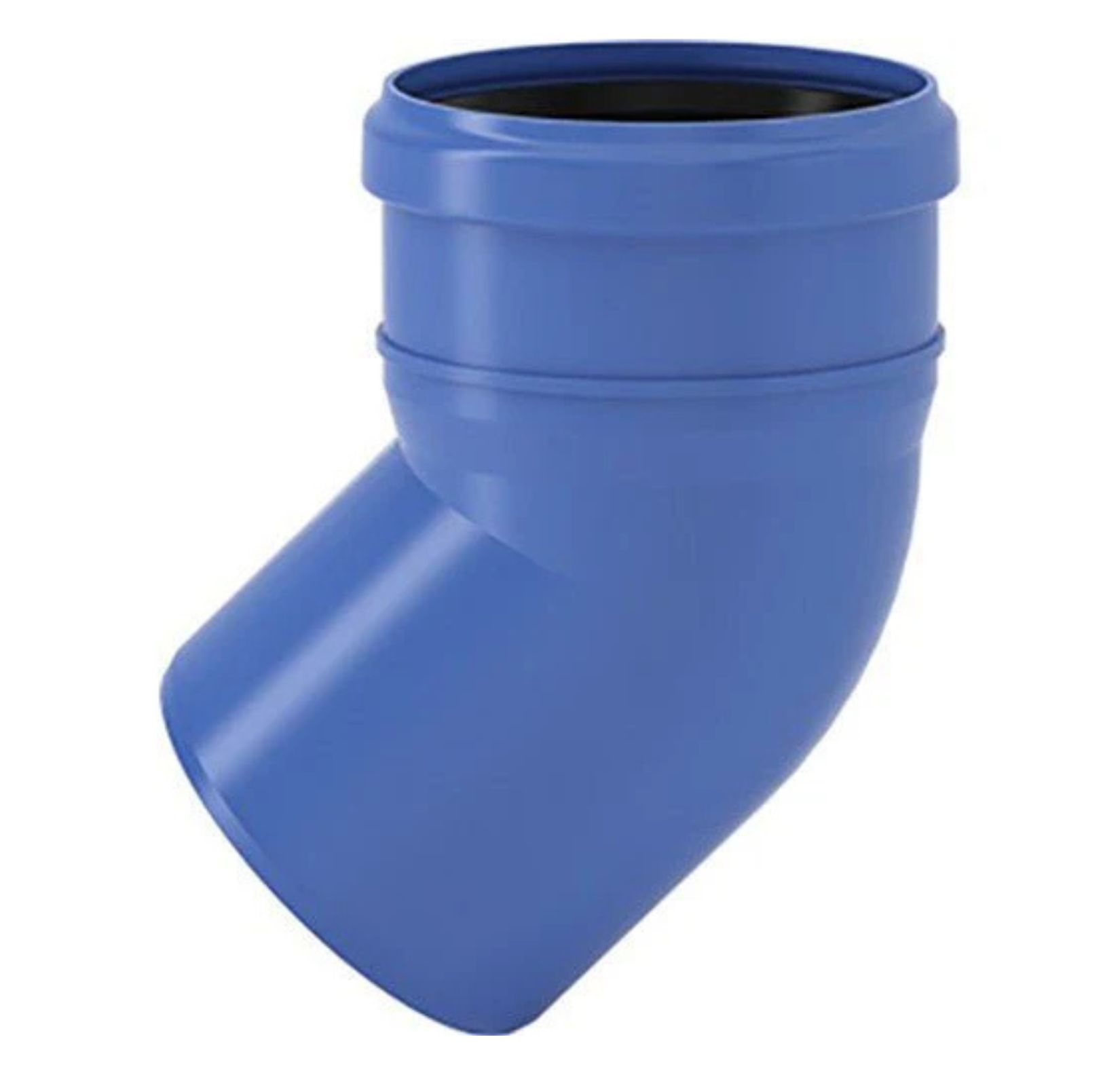

The Valsir Triplus 45 Degree Bend – 32mm provides a highly effective and reliable drainage solution. It is designed for internal waste and ventilation installations. Specifically, it offers a secure method to create an 45′ change of direction in 32mm Triplus pipework. This maintains the watertight performance and acoustic benefits of the system.
Therefore, the bend suits plumbing projects that require a near-right-angle change of direction. Additionally, it acts as a dedicated Triplus push-fit fitting. The pipe connects directly into the fitting socket. A factory-fitted elastomeric seal then ensures a fast, secure, and watertight joint. This eliminates the need for special tools, adhesives, or solvents. The system is suitable for high- and low-temperature waste, ventilation, and rainwater drainage.
The 32mm 45′ configuration forms part of Valsir’s Triplus range of polypropylene waste fittings. As a result, it delivers dependable performance across a wide variety of internal drainage applications. It benefits from high mechanical strength, impact resistance, and soundproofing characteristics. The technical datasheet specifies homopolymer polypropylene with mineral charges and SBR rubber seals.
Key Features & Benefits of Valsir Triplus 45 Degree Bend – 32mm:
Secure Push-Fit Connection: The fitting uses a push-fit socket connection with a factory-fitted elastomeric seal to provide reliable watertightness. The socket also allows movement of the pipe to accommodate thermal expansion, helping maintain joint integrity during changes in temperature.
Easy Installation: The Triplus connection system is designed for quick and straightforward installation without the need for special tools, glues or solvents. The lightweight construction of the system further simplifies handling and installation on site.
45′ Bend Configuration: Incorporates an 45′ change of direction, making it suitable for creating a near-45-degree turn in 32mm Triplus waste pipework.
32mm Pipe Compatibility: Designed for connection to 32mm Triplus pipework. The Valsir technical data sheet identifies 32mm as one of the available nominal diameters within the Triplus system, with a 32mm external pipe diameter and 1.8mm wall thickness.
Excellent Acoustic Performance: The Triplus system incorporates a three-layer pipe construction designed to provide high mechanical characteristics together with excellent soundproofing performance. The system can reduce noise to 12 dB(A) at a flow rate of 2 l/s under the stated test conditions.
High Mechanical and Chemical Resistance: The polypropylene and mineral-filled construction provides strong mechanical performance, including excellent impact resistance at low temperatures. The system also offers high resistance to a wide range of chemical compounds, including at elevated temperatures, while its smooth internal surfaces help minimise pressure losses and deposit formation.
Trusted Valsir Quality: Valsir manufactures the Triplus system using a three-layer polypropylene construction, with fittings manufactured from homopolymer polypropylene and mineral charges. The system is designed in accordance with EN 1451 and is suitable for applications within buildings and for installations externally anchored to building walls.
Technical Specifications:
Product Type: Triplus 45′ bend
Model: 32mm
Manufacturer: Valsir
Material: Homopolymer polypropylene with mineral charges
Seal Material: SBR rubber
Connection: Push-fit socket connection with elastomeric/rubber seal
External Diameter: 32mm
Bend Angle: 45′
Application: High- and low-temperature waste systems, waste-system ventilation and rainwater drainage within buildings
Operating Temperature: -25°C minimum; waste water up to +95°C intermittently and +80°C continuously
Maximum Pressure: +1.5 bar at 20°C for system testing
Reference Standard: EN 1451-1
